KLX300 Ignition Timing: The Power Cliff at 8000 RPM

The KLX300 loses power above 8000 RPM. Everyone knows this. But it only happens at full throttle — not at 80%, not at 90%. Only when you pin it.

We decoded the ignition timing map directly from the Kawasaki ECU binary. Here's what the factory programmed, why it happens, and what the data shows.

The Data

Ross Olsen, an engineer in the PlanetKLX2 community, dumped the entire calibration region from the KLX300 Keihin ECU — ignition timing tables, fuel maps, throttle maps, the full calibration. The raw hex, decoded tables, and analysis are available below.

This is not a dyno estimate. This is what the factory programmed.

The ignition timing map is a 2D table: RPM (rows) vs throttle position (columns). Each cell contains the ignition advance in degrees before top dead center (BTDC). More advance = earlier spark = more power. The ECU looks up the RPM and throttle position, then fires the spark at the corresponding timing.

The Ignition Map

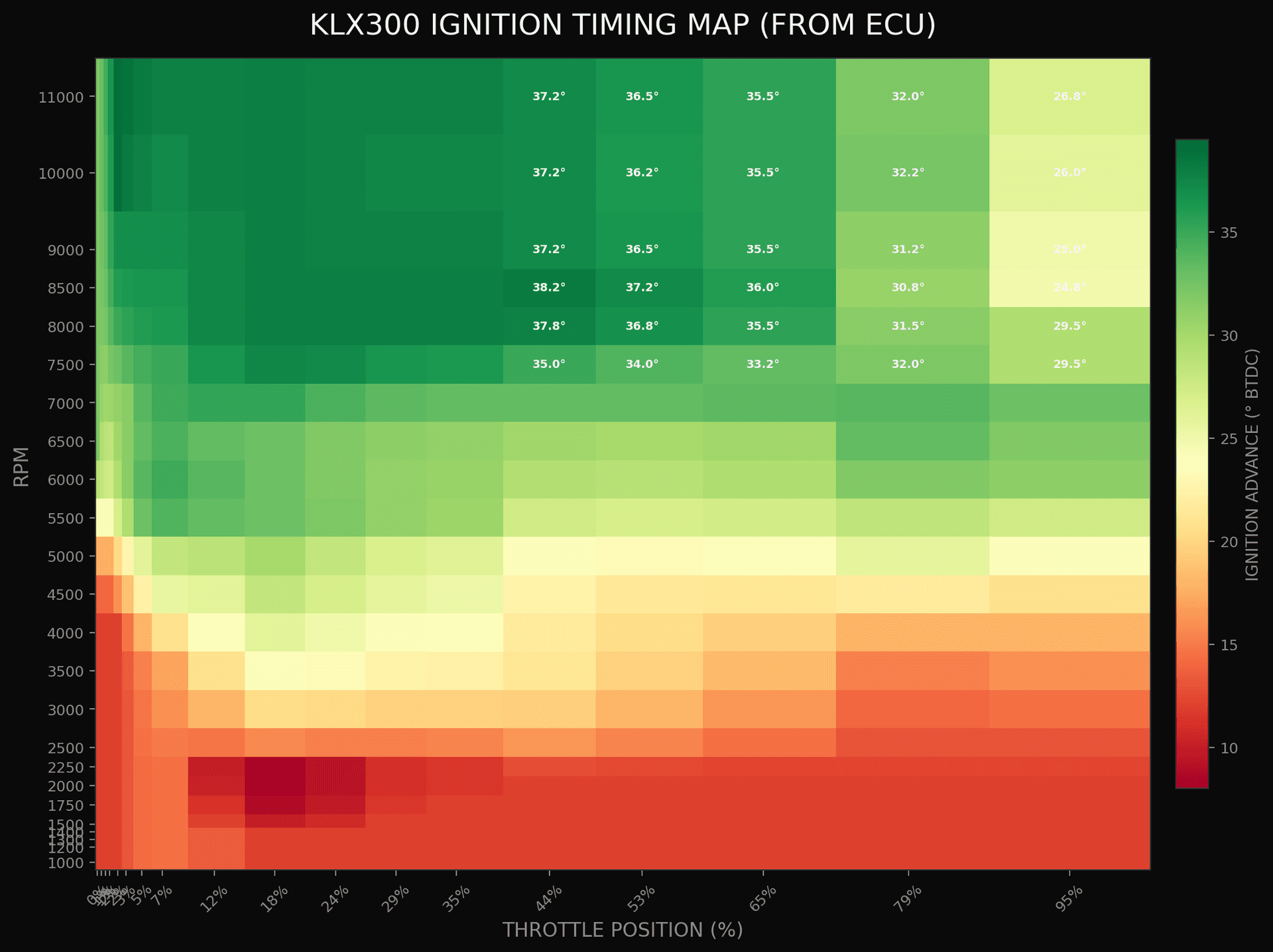

KLX300 ignition timing map decoded from the ECU binary. Green = advanced timing (more power), red = retarded timing (less power).

The full KLX300 ignition timing map, pulled from the ECU. Vertical axis: RPM (1000–11,000). Horizontal axis: throttle position (0–95%). Color: green = advanced timing, red = retarded.

Low RPM (1000–5000): Normal. 12–24° advance. Nothing unusual.

High RPM, low throttle (7500–11,000 at under 44% throttle): Fully advanced. 31–32°. The engine makes maximum power.

High RPM, high throttle (above 7500 RPM, above ~80% throttle): The timing drops. This is the retard zone.

The key cells:

RPM	80% Throttle	100% Throttle	Difference
7500	32.00°	29.50°	2.50°
8000	31.50°	29.50°	2.00°
8500	30.75°	24.75°	6.00°
9000	31.25°	25.00°	6.25°
10000	32.25°	26.00°	6.25°

At 8500 RPM, the ECU pulls 6° of ignition timing between 80% and 100% throttle. The engine can handle full advance at 80% throttle all the way to redline — 31–32° with no problem. It's only when you go to full throttle that the ECU kills it.

This is not a gradual slope. It's a deliberate step function in the calibration.

KLX250 vs KLX300

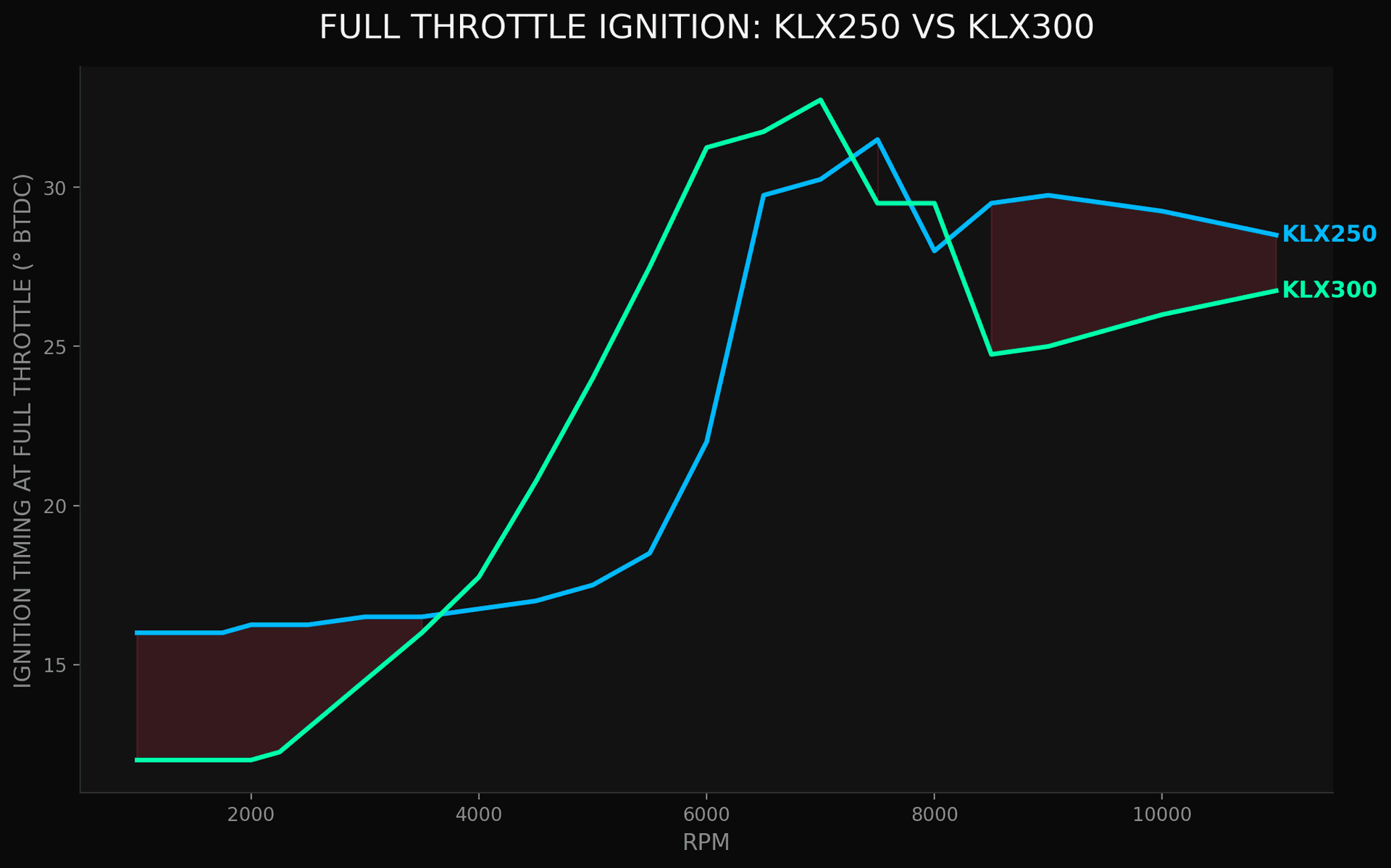

Ignition timing at full throttle: KLX250 (blue) vs KLX300 (green). The KLX300 retards more aggressively above 8500 RPM.

We compared the KLX250 map to the KLX300 map at full throttle. The KLX250 maintains 5° more advance above 8500 RPM.

RPM	KLX250	KLX300	Difference
8500	29.50°	24.75°	4.75°
9000	29.75°	25.00°	4.75°
10000	29.25°	26.00°	3.25°

The KLX300 is tuned more aggressively for emissions compliance (Euro 4/Euro 5). The regulatory test cycle runs at full load — so Kawasaki retarded timing at exactly that operating point. The KLX250 map doesn't have this restriction.

At 80% throttle, the situation reverses — the KLX300 actually runs slightly more advance than the KLX250.

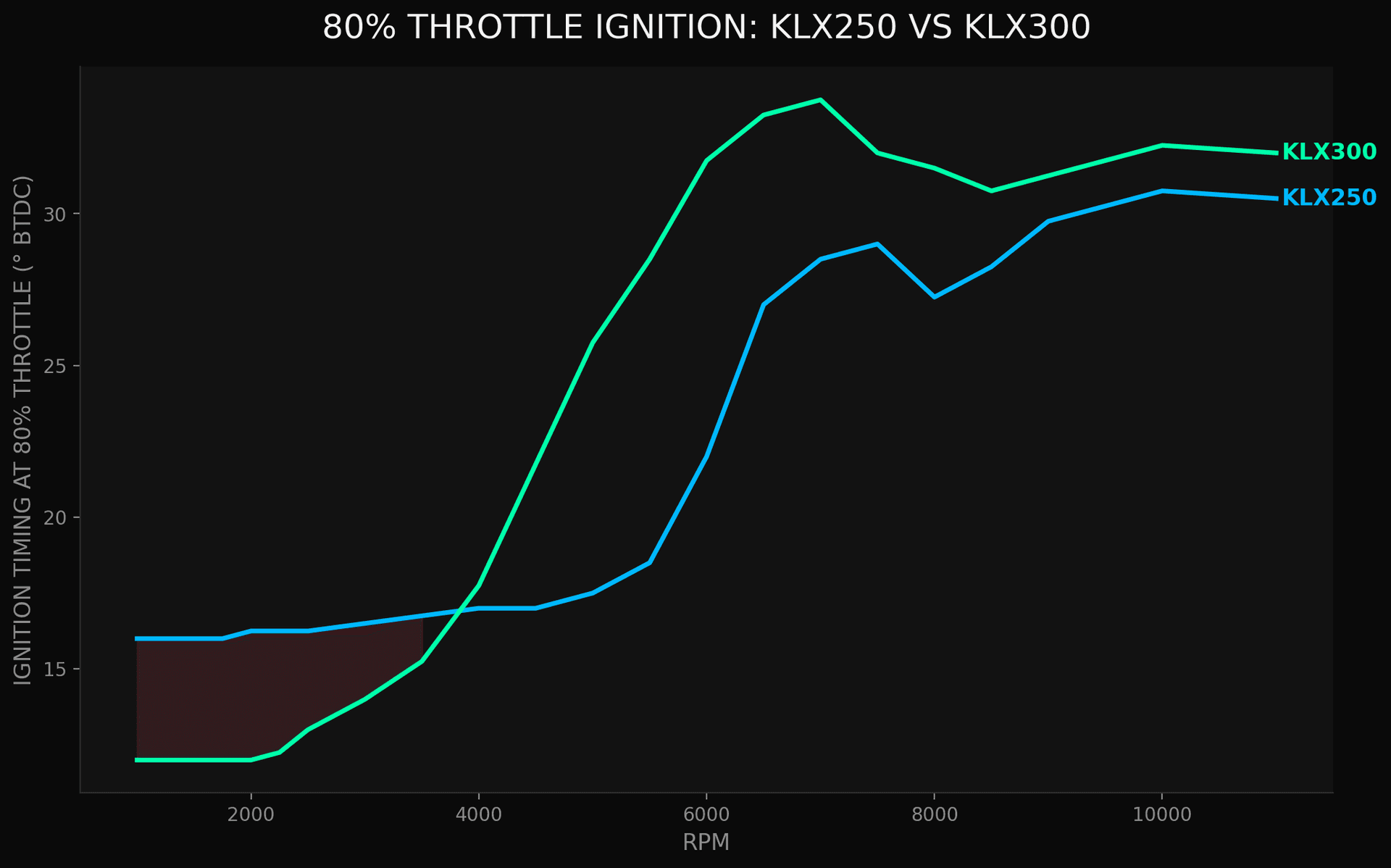

Ignition timing at 80% throttle: KLX250 (blue) vs KLX300 (green). Nearly identical at high RPM.

Power Impact

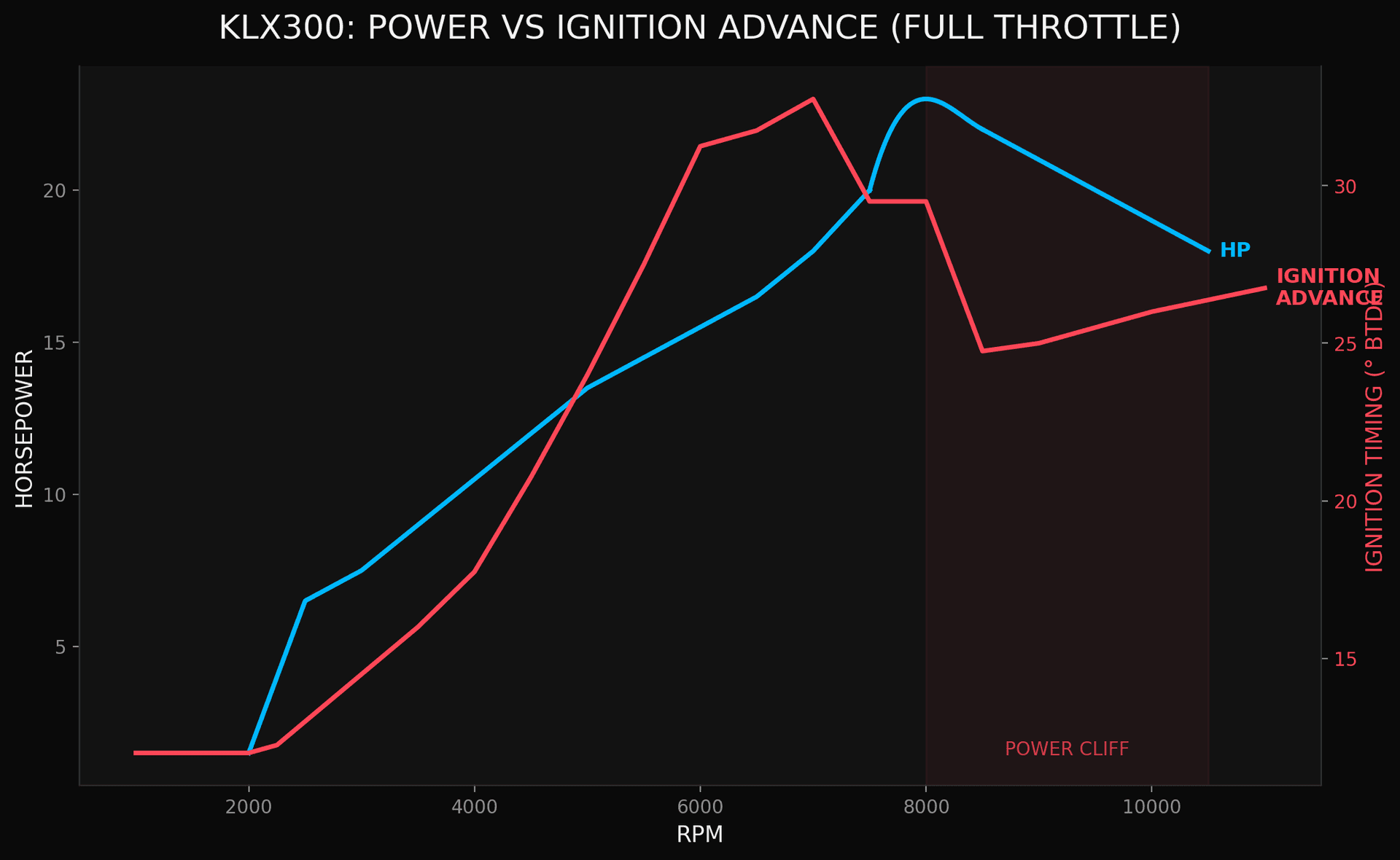

Horsepower (blue) and ignition timing (red) at full throttle. Power drops where timing retards.

Power and ignition timing track together at full throttle. The dyno data (KLX300 stock, third-party test) shows:

8000 RPM: 23 HP, 29.5° timing — peak power
8500 RPM: 22 HP, 24.75° timing — 1 HP lost, 5° pulled
9000 RPM: 21 HP, 25.0° timing — 2 HP lost from peak

Two horsepower gone from ignition retard alone. Your exhaust, intake, big bore kit — none of it matters if the ECU is pulling 6° of timing at full throttle.

80% vs 100% Throttle

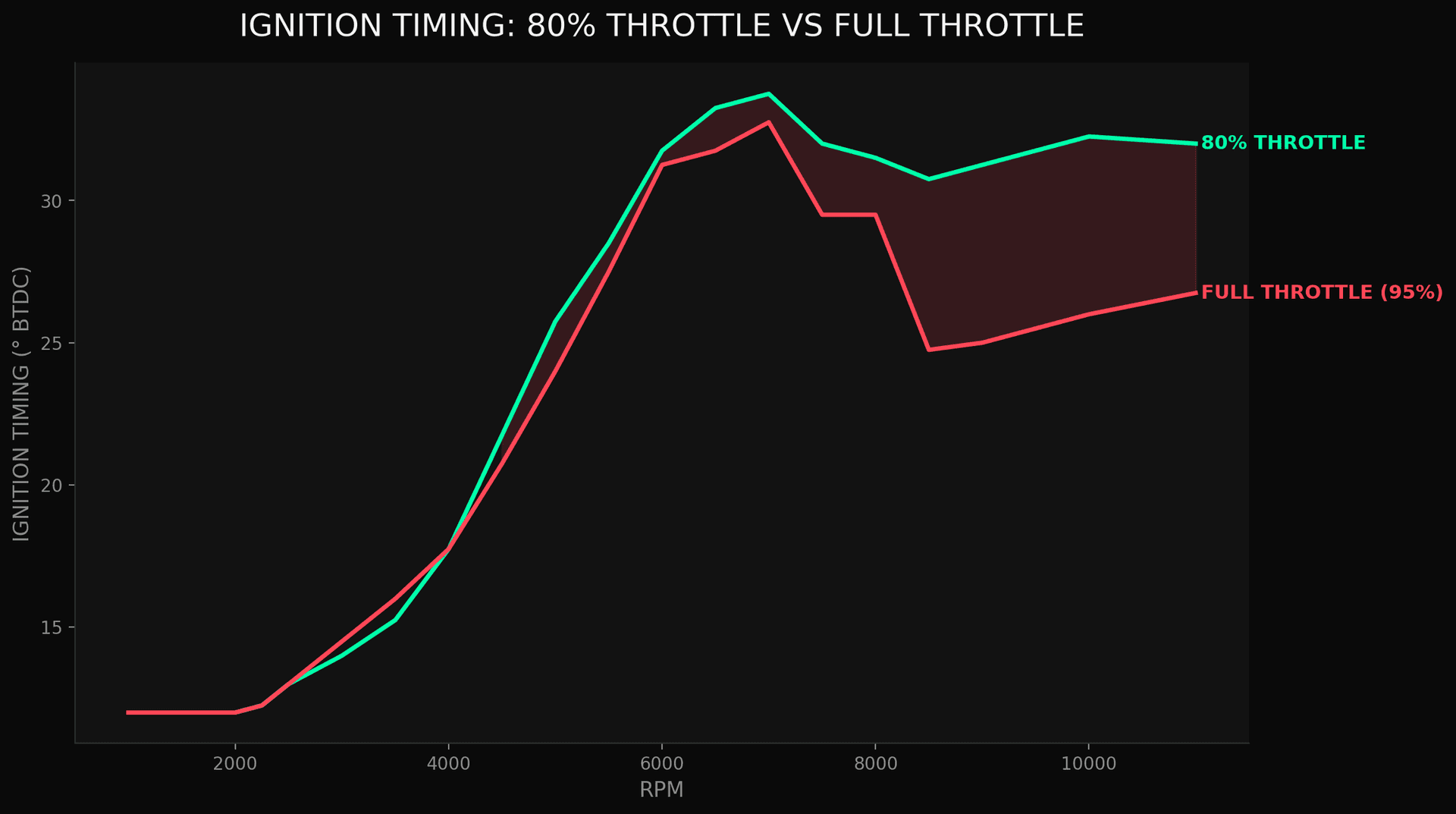

Ignition timing: 80% throttle (green) vs 100% throttle (red). Above 8500 RPM, 100% throttle loses 6° of timing.

The chart that matters. Green line is 80% throttle — fully advanced, all the way to redline. Red line is 100% throttle — Kawasaki kills it above 8500.

The engine has no problem making power at high RPM. The ECU is the restriction, and it only activates at full throttle.

The Fix: TPS Clamping

Since the ECU only retards timing at 100% throttle, and timing is fully advanced at ~80% throttle across all RPMs, there's a straightforward approach: prevent the ECU from ever seeing 100% throttle above a certain RPM.

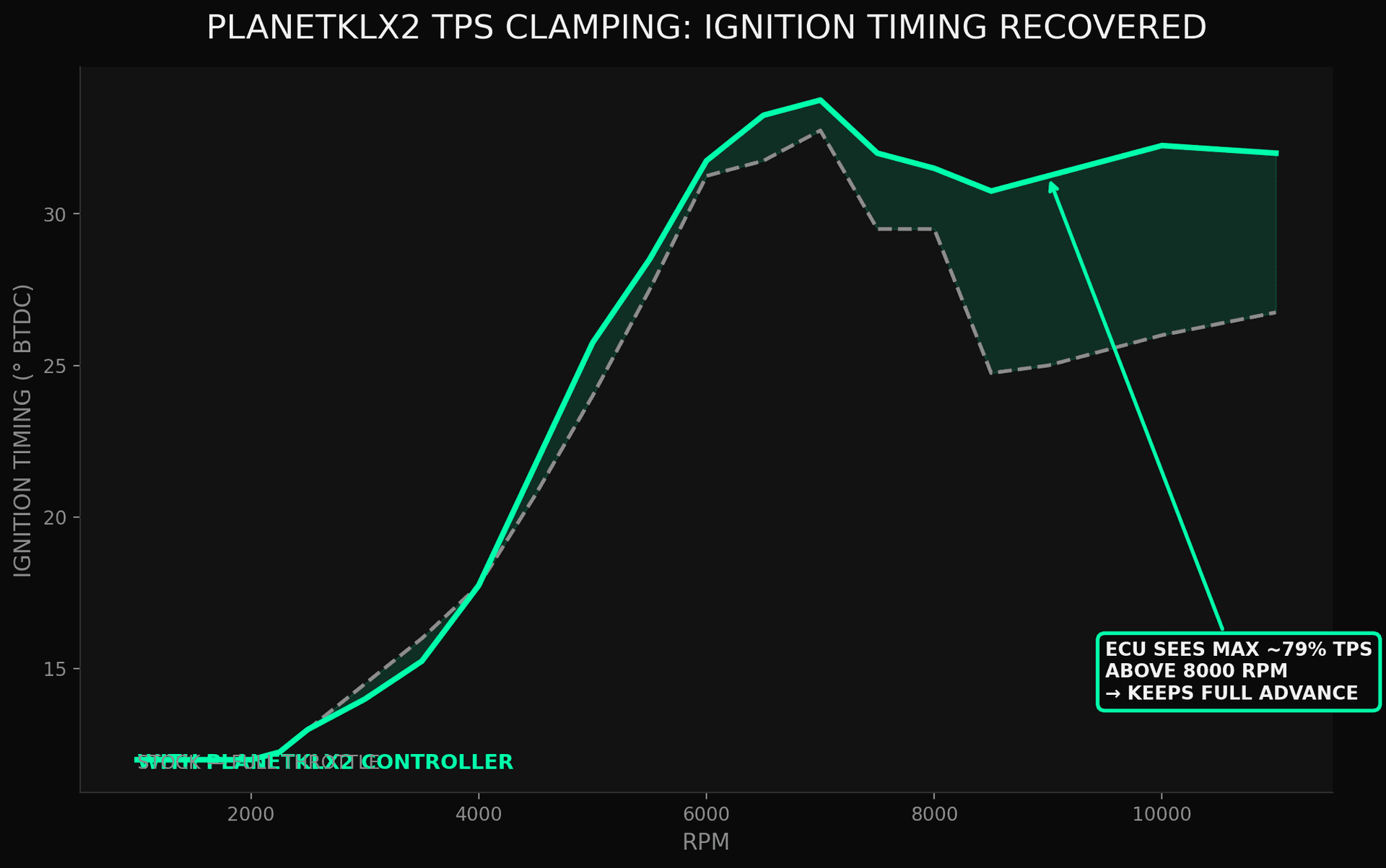

TPS clamping fix: stock full throttle (dashed) vs with TPS capped at 80% above 8000 RPM (green). Shaded area = recovered timing.

A controller sits between the throttle position sensor and the ECU:

Below 8000 RPM: Passes the real TPS signal through, unchanged
Above 8000 RPM: Caps the TPS signal at ~80%. The ECU uses the fully advanced timing map

The tradeoff: below ~7000 RPM, capping at 80% loses less than 1° of timing. Above 8500 RPM, it recovers 6°. The net effect across the riding range is overwhelmingly positive.

RPM	Stock (100% TPS)	With Controller (80% TPS)	Recovered
7500	29.50°	32.00°	+2.50°
8000	29.50°	31.50°	+2.00°
8500	24.75°	30.75°	+6.00°
9000	25.00°	31.25°	+6.25°
10000	26.00°	32.25°	+6.25°

This approach is reversible — unplug the controller, stock behavior returns.

Raw Data

All ignition timing data decoded from the ECU binary. Contains the full 2D ignition timing maps for both KLX250 and KLX300 (CSV format).

Download ECU Data

KLX250 and KLX300 ignition timing maps decoded from the factory ECU binary.

Credits

90% of the ECU reading and decoding work was done by Ross Olsen from the PlanetKLX2 community. He dumped the calibration region, decoded the tables, and shared everything openly — raw hex, parsed maps, and analysis.

The dyno data is from an independent third-party test (Dirt Rider magazine).
