The ECU (Engine Control Unit) on your KLX is a mini-computer that controls fuel injection and ignition. It also actively limits engine performance.
Two Main Restrictions
- Subthrottle - Limits airflow in midrange
- Soft Rev Limiter - Cuts power after 7500-8000 RPM
Subthrottle (Secondary Throttle Plate)
The electronically controlled secondary throttle plate is one of the first restrictions on engine performance.
How It Works
- Subthrottle is operated exclusively by the ECU
- No mechanical connection to the throttle tube
- ECU limits opening even when main throttle is fully open
Dyno Evidence

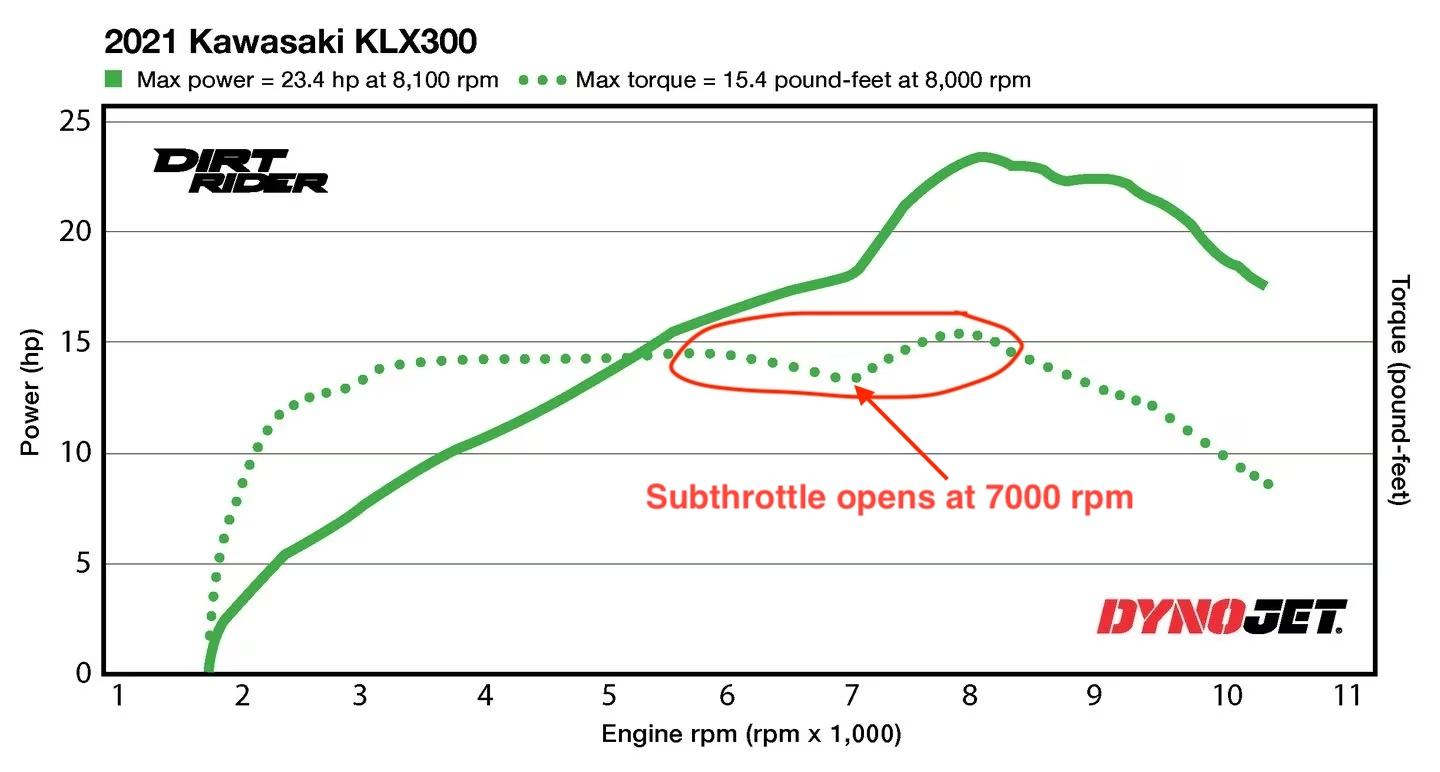

On KLX300, this results in a power drop at 5000 RPM followed by a spike at 7000 RPM when subthrottle finally opens fully:
KLX250 doesn't have as dramatic a midrange drop, but the secondary throttle still limits airflow throughout the range.
Why It Exists
Likely for emissions compliance and rideability on larger bikes. On a 300cc dual sport, it's not particularly useful.
The Fix
Removing the subthrottle plate provides:
- Better throttle response
- ~4 hp increase in midrange on KLX300
See Intake Modifications for removal instructions.
Soft Rev Limiter
A lesser-known fact: Kawasaki implemented a soft rev limiter on both models.
| Model | Rev Limit |
|---|---|
| KLX250 | ~7500 RPM |
| KLX300 | ~8000 RPM |
What Happens
The ECU uses multiple methods to limit RPM:
- Closes subthrottle to reduce airflow
- Reduces voltage to ignition coil
- Retards ignition timing
Dyno Evidence
Notice the torque and HP cliff after the rev limit:

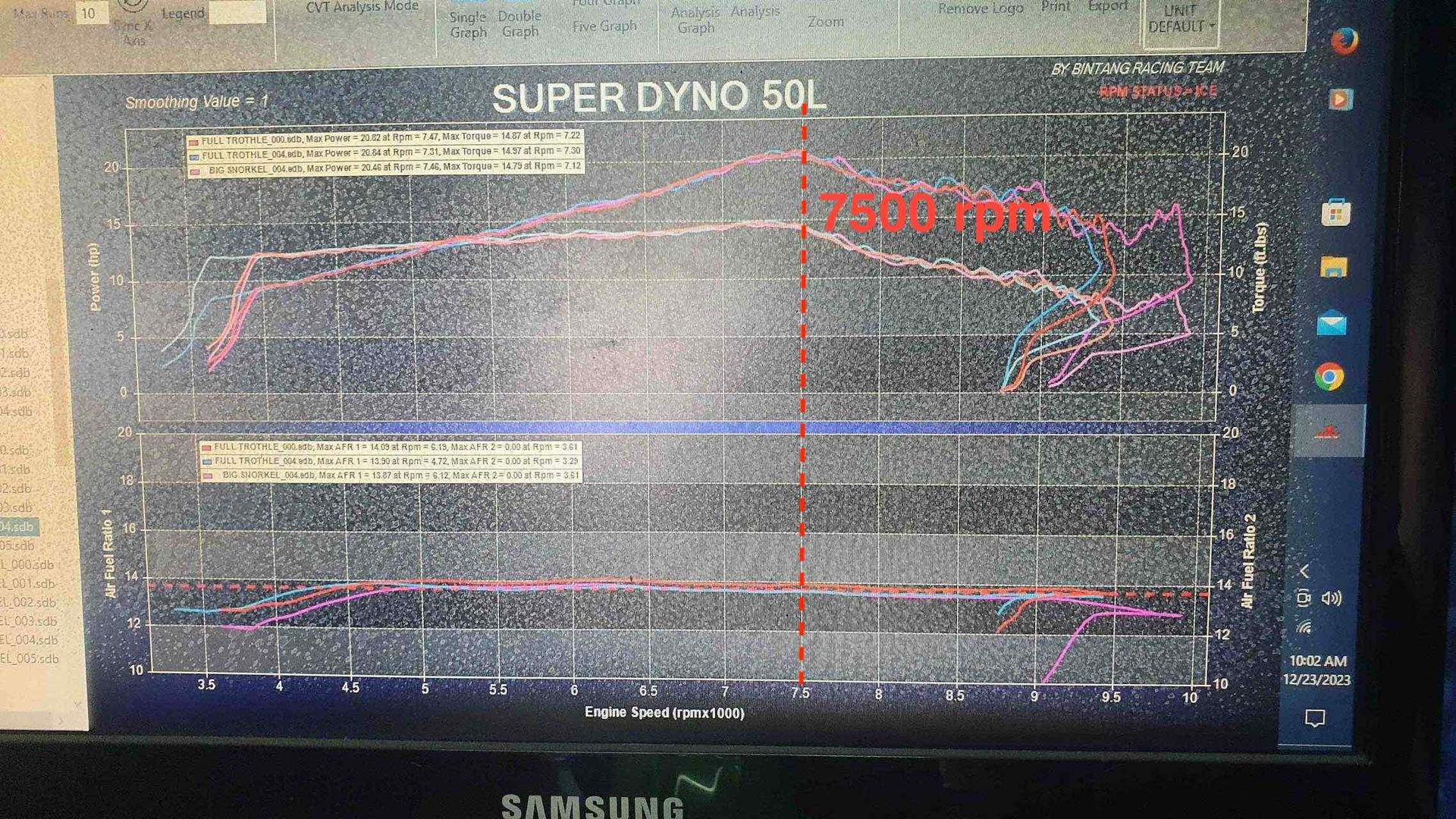

KLX250:

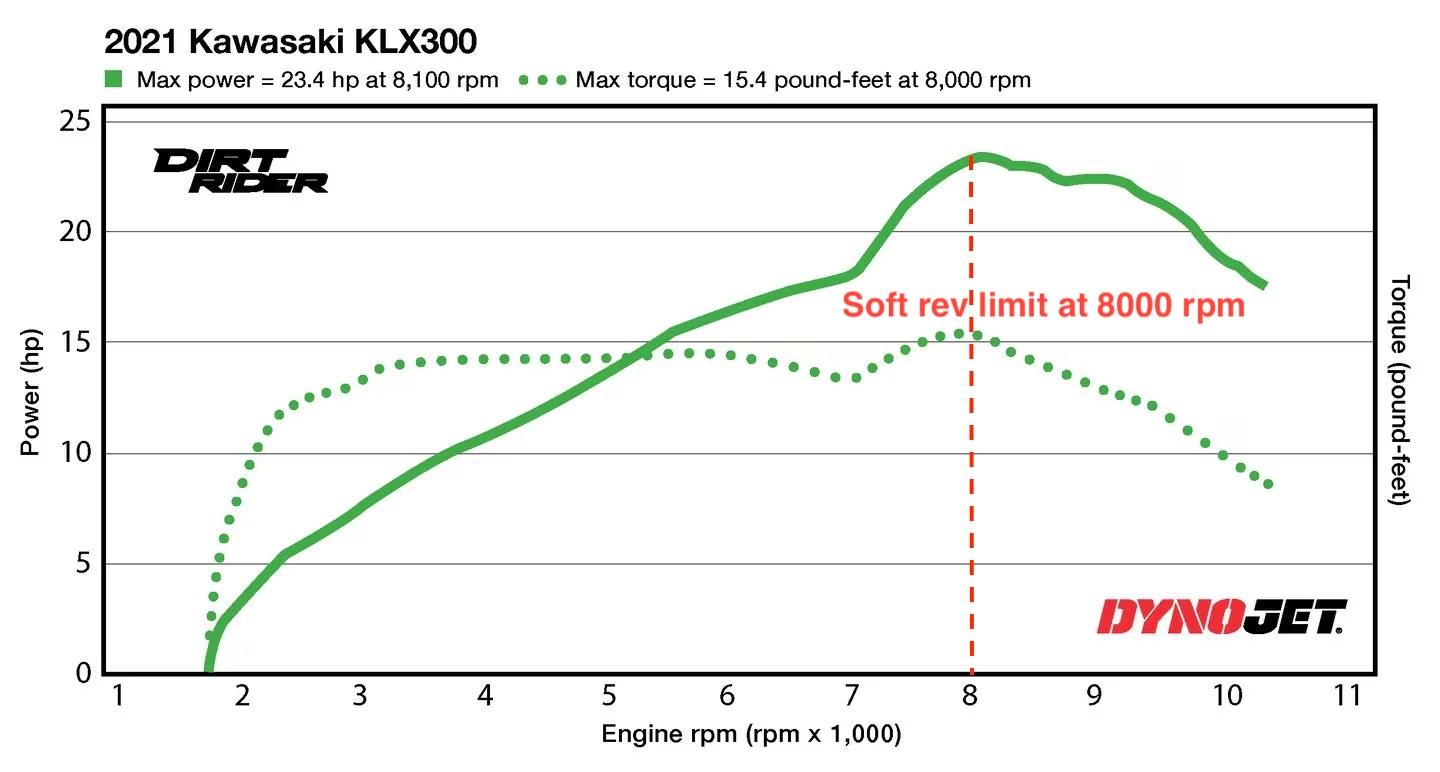

KLX300:
The Fix
Options to address the rev limiter:
- JDM ECU: Higher rev limit and better ignition timing
- ECU Reflash: Third-party reflash services
- Aftermarket ECU: Full control over fuel and timing
See ECU Tuning for detailed comparison and pricing.
Summary
The KLX ECU actively limits performance through both airflow and ignition restrictions. The good news: these can be addressed with the right modifications.
| Restriction | Impact | Fix |
|---|---|---|
| Subthrottle | 4hp midrange loss | Remove plate |
| Rev limiter | No power past 7500-8000 | JDM ECU or reflash |
