Electronics
JDM KLX250/300 ECU
JDM ECU for KLX250/300 — unrestricted ignition timing, no soft rev limiter, +2-9 hp top end. Discontinued; successor: the TuneFI fuel controller.
Discontinued — not being restocked. The successor is the TuneFI fuel controller — it does everything this product did, and much more, for about the same money.
Really need one? Drop me an email — used units occasionally turn up.
- +Unlocked 30+ HP potential
- +Removed the soft rev limiter
- +Stable overrev to 10000 rpm
- +Dynotested
- +Plug-and-play installation
Weight: 250g
Discontinued
The JDM ECU is no longer available and will not be restocked — the supply of used Japanese-market ECUs has dried up.
Its job is now done better by the TuneFI fuel controller:
- The same fix, plus much more, for about the same money. The JDM ECU only swapped to a fixed factory map with unrestricted ignition timing. TuneFI recovers that top-end ignition timing (TPS spoof, validated on V3 hardware — see the power cliff analysis) and adds phone-tuned 3D fuel mapping, 100 Hz data logging, wideband AFR, and ECU sensor access.
- Tunable for your exact setup — not locked to one factory calibration.
If you really need a JDM ECU, drop me an email — used units occasionally turn up.
The rest of this page documents what the JDM ECU was and why it mattered — the dyno data still stands.
JDM ECU vs TuneFI
| JDM ECU | TuneFI | |
|---|---|---|
| Ignition above 8000 | Unrestricted factory map (+5° advance) | TPS spoof recovers the factory retard (power cliff) |
| Fueling | Fixed factory map — no adjustment | 3D map (RPM × TPS), tuned live from your phone |
| Data | None | 100+ Hz logging, wideband AFR, ECU sensor access |
| Fit to your mods | One calibration for every bike | Map matches your intake/exhaust/altitude |
| Firmware updates | None (used part) | OTA from the app |
| Price | $335 (when available) | $350 |
| Availability | Discontinued | In stock |
The JDM ECU was a swap to a different fixed calibration. TuneFI is the adjustable successor: the same top-end ignition fix, plus fuel control, data, and updates. Full capability comparison in the fuel controller comparison.
Overview
The Japanese market ECU for KLX250 has unrestricted ignition advance timing so it doesn't have soft rev limit as the rest of the world models. This unlocks power that was restricted for emissions compliance.
What It Does

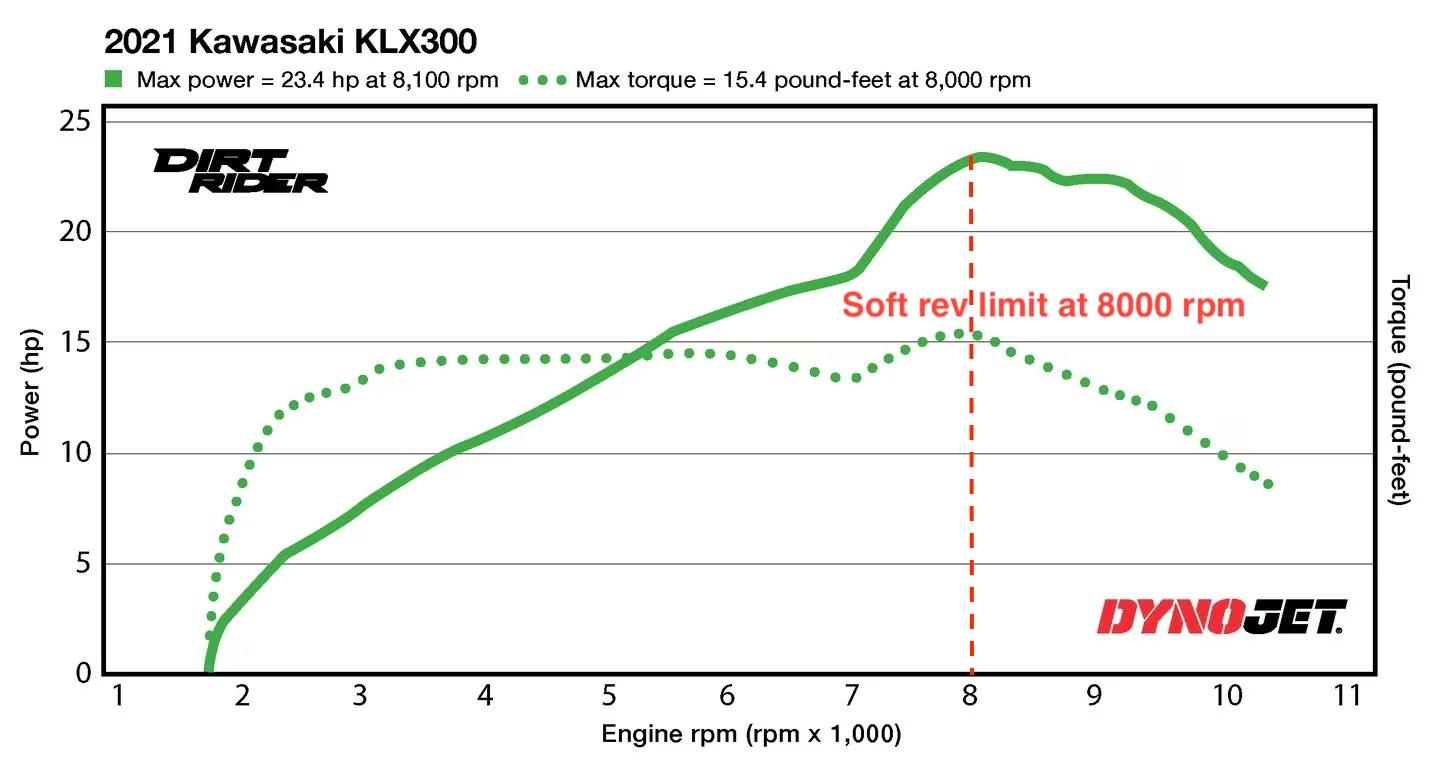

| Model | Stock Soft Rev Limit | JDM Rev Limit |
|---|---|---|
| KLX250 | 7500 RPM | 11000 RPM |
| KLX300 | 8000 RPM | 11000 RPM |
Specifications
| Spec | Value |
|---|---|
| Compatibility | all EFI KLX250 / KLX300 |
| Ignition | up to BTDC 39° @ 11000 rpm |
| Rev Limit | 11000 rpm |
| Peak power | ~9000-10000 rpm |
| Installation | Direct swap (10 min) |
| Origin | Japan OEM |

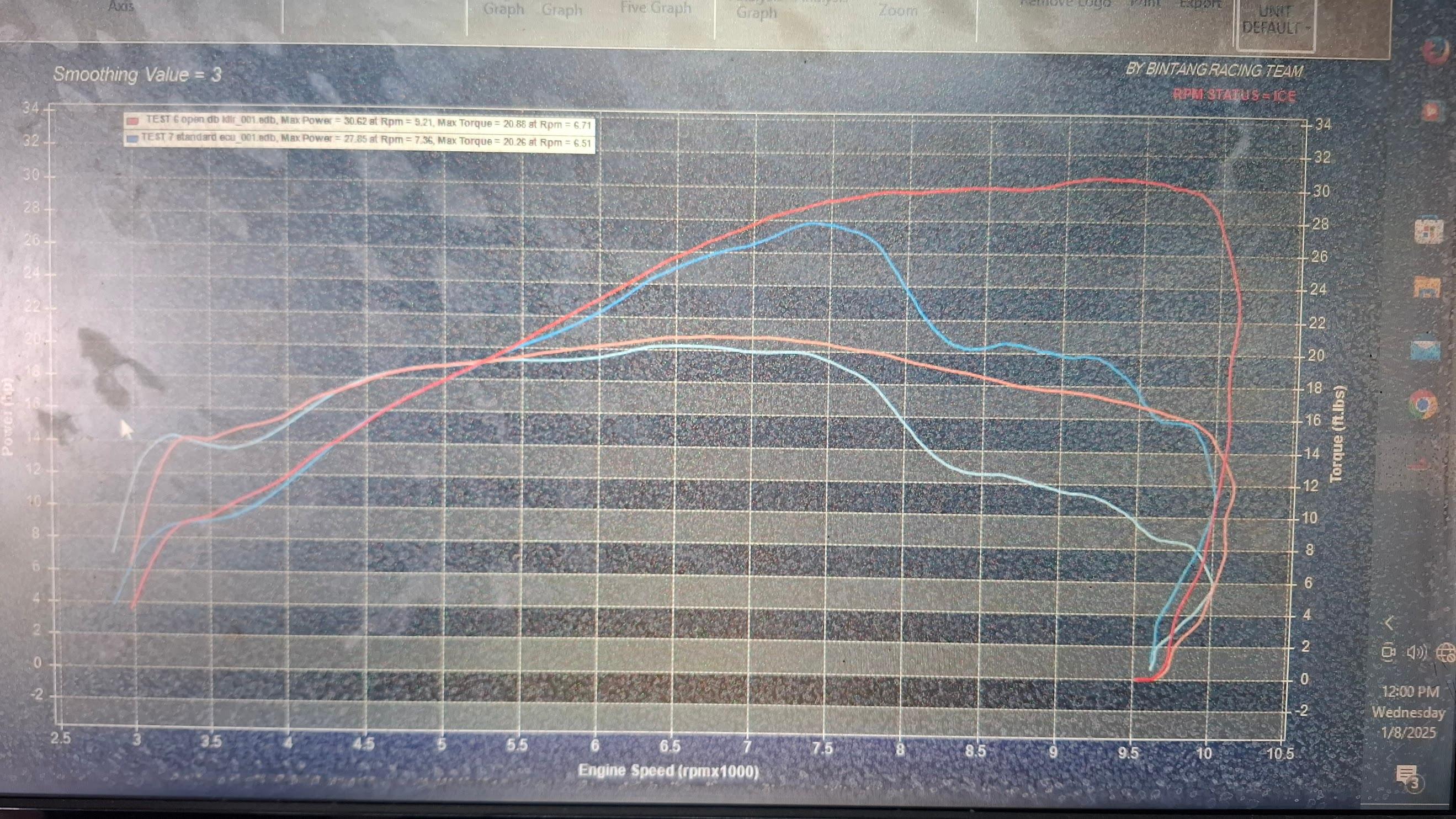

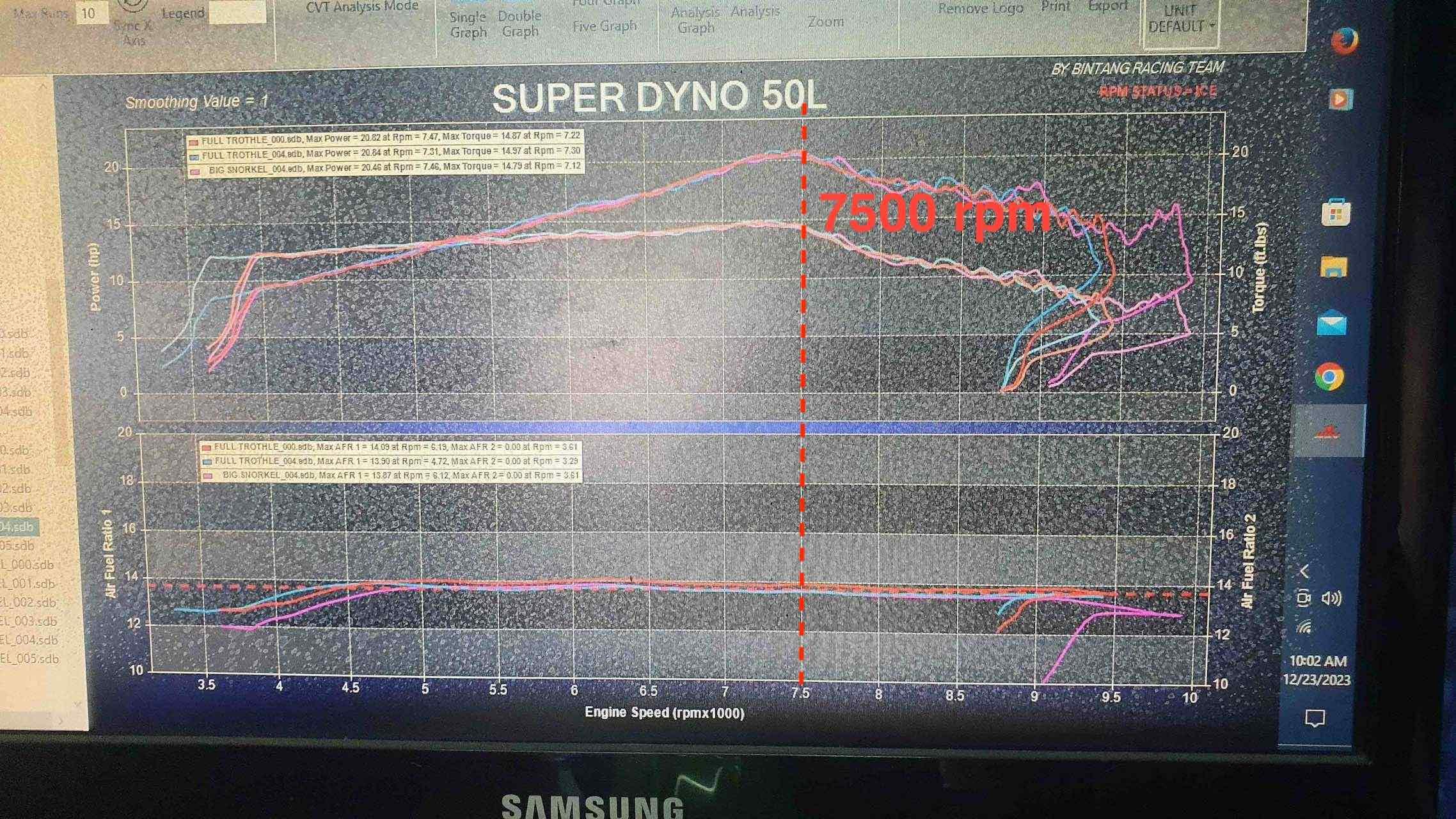

Dyno Tested
We've tested this ECU on our dyno with various configurations:
- Stock bike: +2-3 hp top end
- With intake and exhaust mods: +7-9 hp top end
- Full build: 30+ hp from the wheel achievable
JDM ECU FAQ
What is a JDM ECU?
A factory Kawasaki ECU from a Japanese-domestic-market KLX250. Japan's emission regulations differed from other markets, so the JDM ignition map is unrestricted: up to BTDC 39° @ 11000 rpm instead of ~BTDC 34°, with no soft rev limiter (11000 rpm vs 7500/8000 on other markets). Compared to the US KLX300 ECU it runs about 5° more advance above 8000 RPM at full throttle.
How much power does a JDM ECU add?
On our dyno: +2-3 hp top end on a stock bike, +7-9 hp with intake and exhaust mods, and 30.93 hp @ 8200 rpm on a full build (open airbox, full exhaust, subthrottle removal) with stable power to 10,000 rpm — where the US ECU falls off above 8,000.
Is the Kawasaki JDM ECU still available?
No — discontinued in 2026 and not being restocked; the supply of used Japanese-market ECUs has dried up. The successor is the TuneFI fuel controller, which recovers the same ignition timing and adds fuel control. If you really need a JDM ECU, email me — used units occasionally turn up.
JDM ECU vs ECU reflash — which is better?
The JDM ECU added ignition advance and was plug-and-play. The aftermarket reflash for the KLX300 (BDSB, $349) does the opposite — its calibration removes advance, the wrong direction for power — and requires shipping your ECU away for 1-2 weeks. Full data breakdown in the fuel controller comparison.
Do you still need a fuel controller with a JDM ECU?
On a modified bike, yes — the JDM map is a fixed factory calibration, so it doesn't compensate for aftermarket intake/exhaust. Riders typically paired it with a piggyback controller or a 270cc injector. TuneFI replaces both jobs in one device.
Will a JDM ECU fit my KLX300?
It fits all EFI KLX250 / KLX300 models — a direct 10-minute swap under the left rear fender. A stock KLX300 also needs a 270cc Fuel Injector for proper fueling.
Installation
Located under the left rear fender, mounted on the airbox. Unplug stock ECU, plug this one in.
For stock KLX300, add a 270cc Fuel Injector for proper fueling. For modified bikes, the TuneFI fuel controller is the clean way to handle fueling — it recovers the same ignition timing as this ECU and tunes fuel from your phone.
For best results, pair with an Airbox Snorkel for improved airflow.
